DANON SPRING RETURN DAMPER ACTUATOR DA
The DA series non-spring return damper actuators can be used to adjust and control damper actuators in HVAC systems. Easy direct installation and no need linkage device to save installation time and cost. Manual switch control and timely adjustment on site to convent manual location in emergency case. Universal shaft design is useful for adjustment shaft angle on site. Position indicator and baf e board clearly.

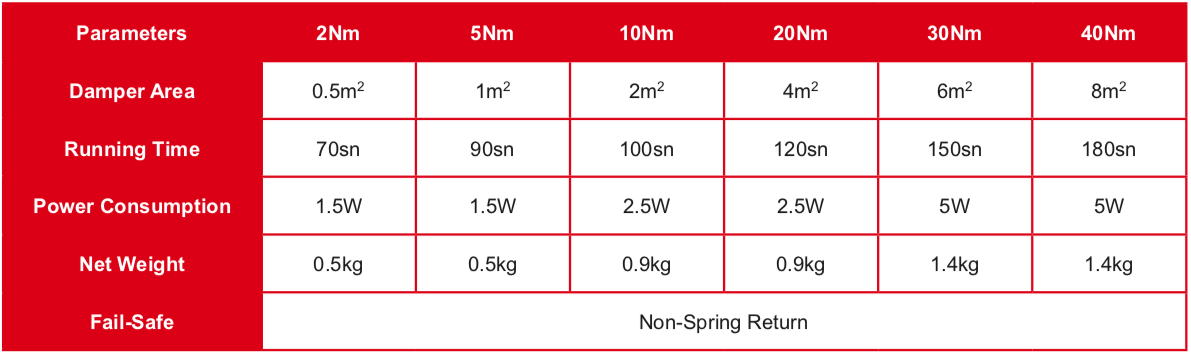

| Specifications | 70,000 circles lifetime |
| Mechanical Indicator | |
| Power Source | 24V AC/DC, 230V AC |
| Output Signal | 0~10V DC / 4~20mA output |
| 2 point / 3 point Floating, On/Off | |
| Working Temperature | -20 ~ 50°C |
| Ambient Humidity | 5 ~ 95% |
| Protection | ABS engineering material IP54 |
| Rotation Angle | 0 ~ 90° mechanical adjustment |
| Warranty | 2 years |
| Certificates | CE and ISO9000 |
| Country of Origin | People Republic of China (PRC) |
