RT226-E3FAN COIL ROOM THERMOSTAT RT226-E3
The “RT226-E” series thermostats are designed to control the room temperature in industrial, commercial and residential environment via controlling the fan coil units (with or without motorized valve), damper, diffuser etc. The thermostat controls the valve to reach the set point. This product is very easy to use, suitable with every fan coil units.

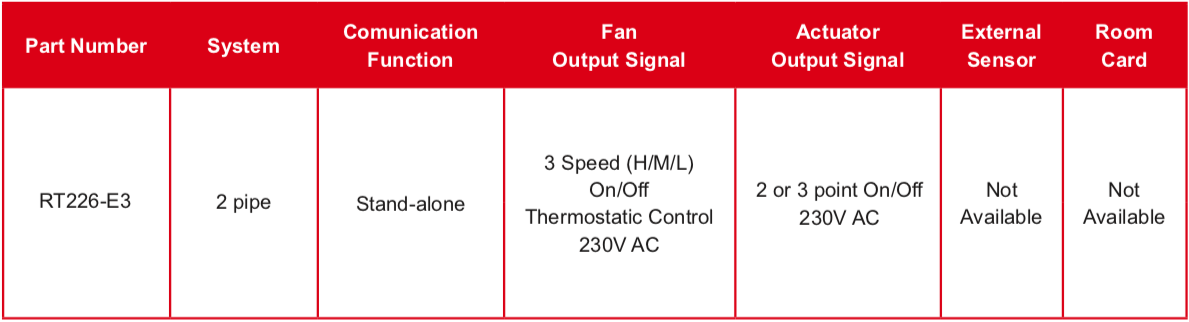

| Part Number | RT226-E3 |
| Specifications | 2 pipe Fan Coil Systems |
| 3 speed (H/M/L) thermostatic fan control | |
| 2 or 3 point actuator On/Off control | |
| Power Source | 230V AC, 50/60Hz |
| Setting Range | 10 ~ 30°C (heat / cool mode) |
| Accuracy | ±1°C |
| Load Current | 2A (fan output) |
| Color | White |
| Installation | Surface mounting |
| Dimensions | 130X85X40mm |
| Warranty | 2 years |
| Certificates | CE and ISO9001 |
| Country of Origin | People Republic of China (PRC) |
